Efficiently create double-sided layers in After Effects

Working with 3D in After Effects can often be challenging, especially when it comes to designing a layer differently on both sides. Perhaps you have felt the need to display a card or a similar element in a slideshow that shows content on both sides. Here you will learn how to effectively solve this problem without having to deal with complicated techniques.

Key Insights

• The use of 3D layers in After Effects allows you to create double-sided content.
• With the Card Dance effect and the Shatter effect, you can create engaging and creative 3D layers.
• By being able to specify different back layers, you can design each side individually.

Step-by-Step Guide

Step 1: Create Camera and Enable Layers

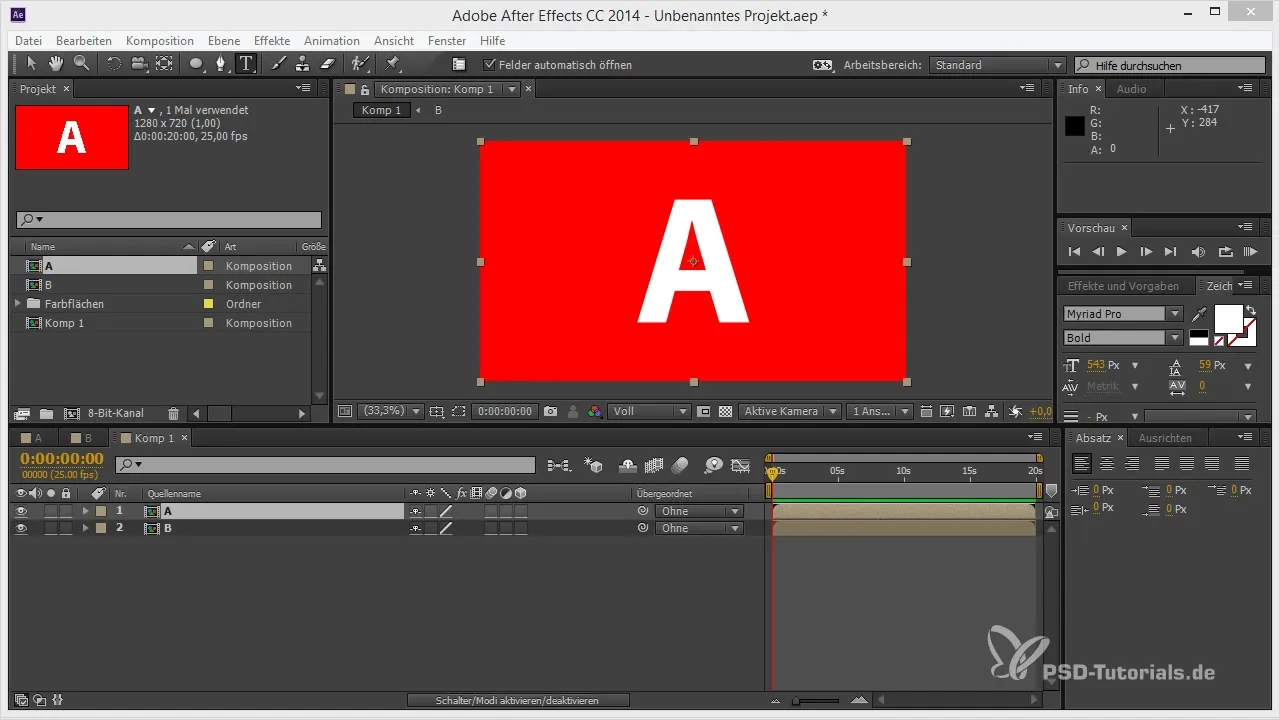

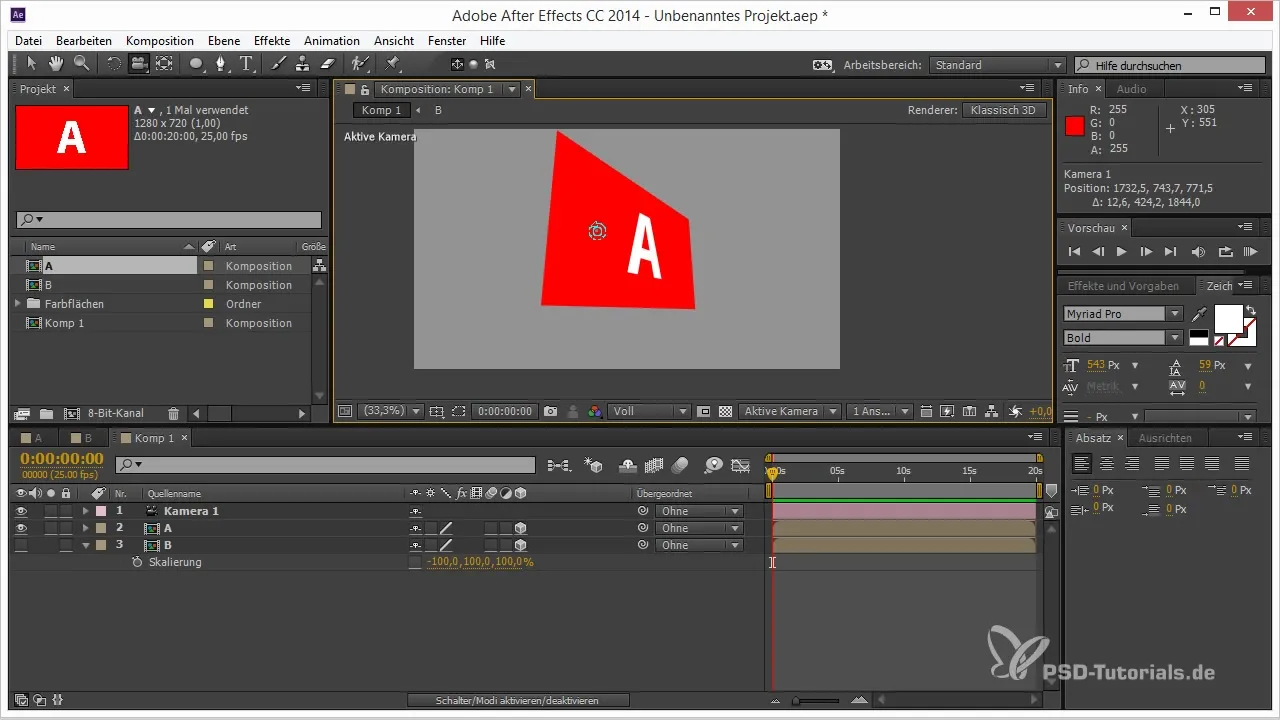

To start, first create a camera in your After Effects project. Here, enable the two layers as 3D layers by checking the appropriate box. You will need two layers, one for the front (A) and one for the back (B).

Step 2: Adjust the Position of Layers

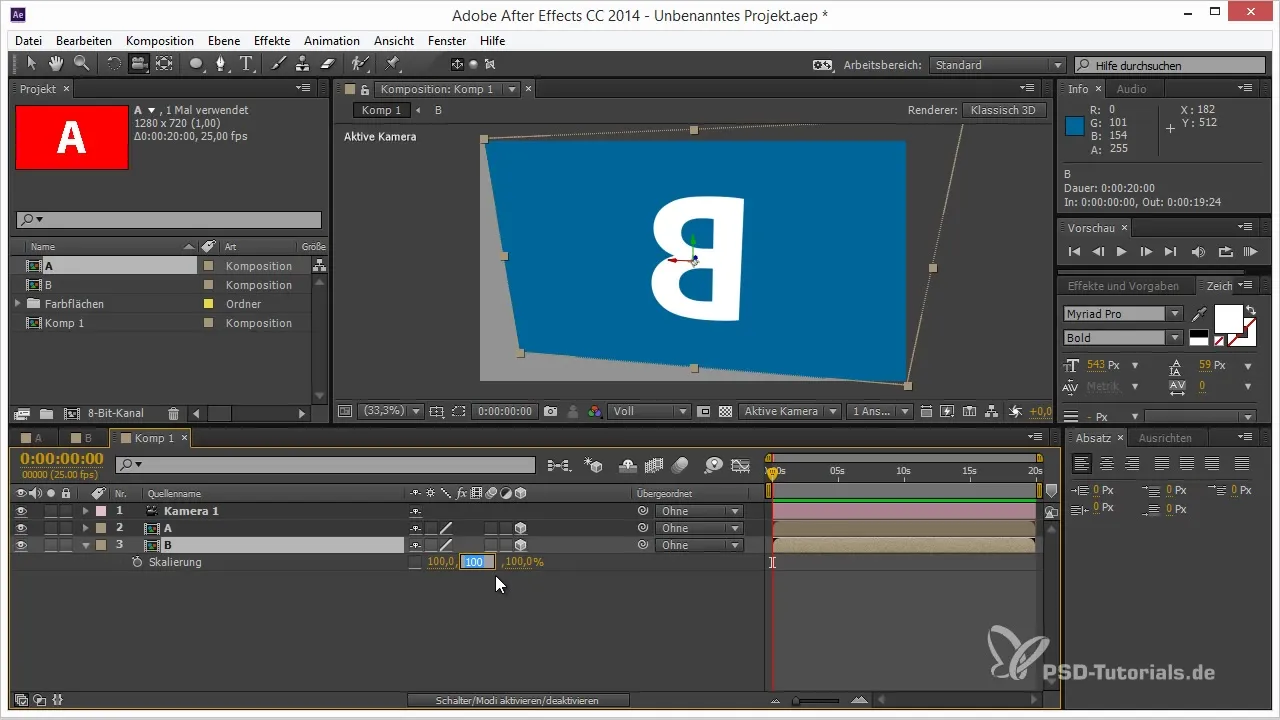

Now slightly move the position of layer A forward and layer B backward. This method ensures that the two layers do not overlap and creates a small gap between them. This approach is the simplest but requires that you animate both layers separately.

Step 3: Isolate Layer A

To better design the back side, first hide layer B so that you only see layer A. This helps you to create a double-sided layer without visual disturbances from the other layer.

Step 4: Add Card Dance Effect

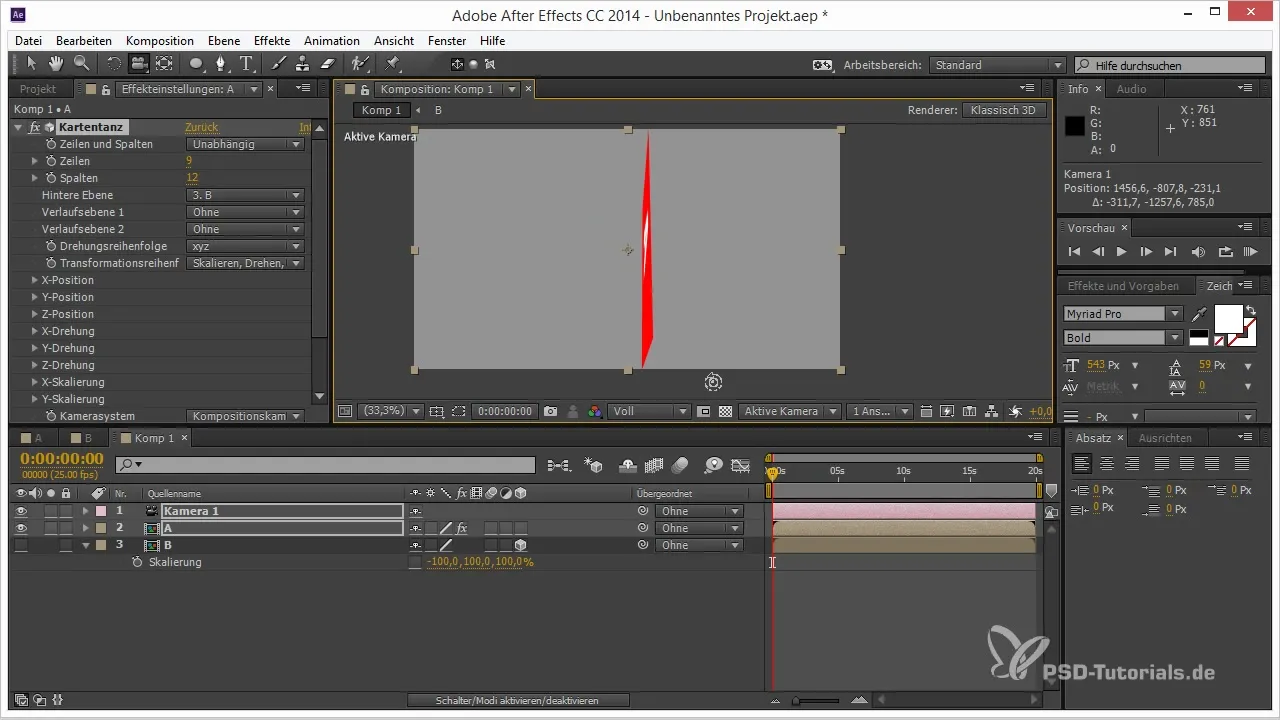

Activate the Card Dance effect by selecting it from the effects list. Make sure to turn off the layer's 3D function. With the Card Dance effect, you gain the ability to apply different content to both sides of the layer.

Step 5: Select Composition Camera

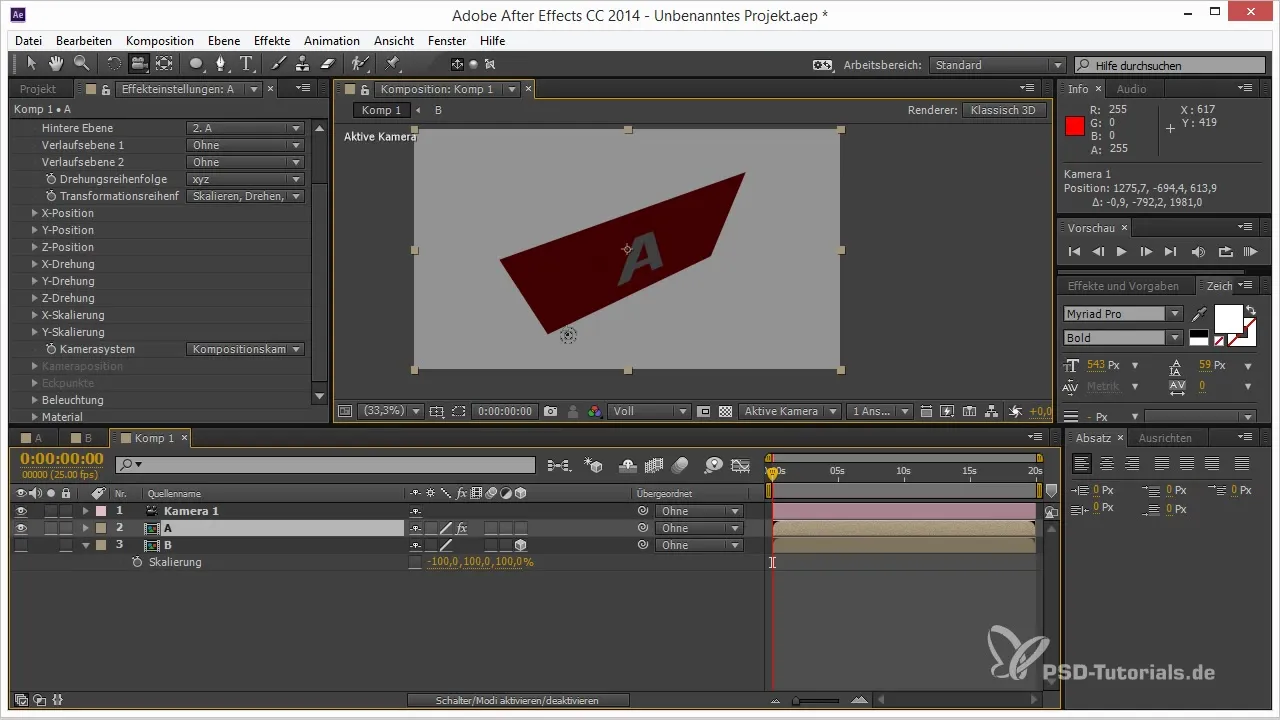

Now select the composition camera in the Card Dance effect. This will animate your layer in 3D, allowing for creative possibilities.

Step 6: Adjust Lighting

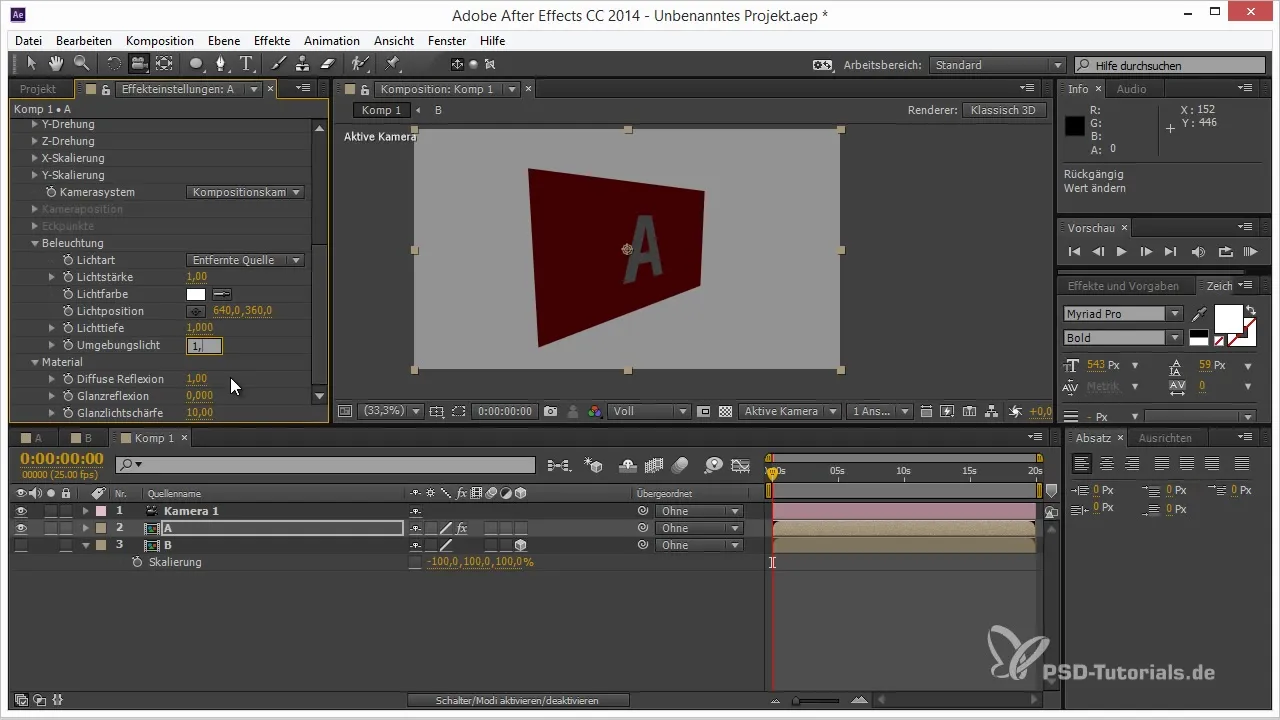

For further refinement, go into the material settings and adjust the diffuse reflection as well as the ambient light settings. This enhances the overall look by evenly illuminating both sides of the layer and achieving visual aesthetic.

Step 7: Specify Back Layer

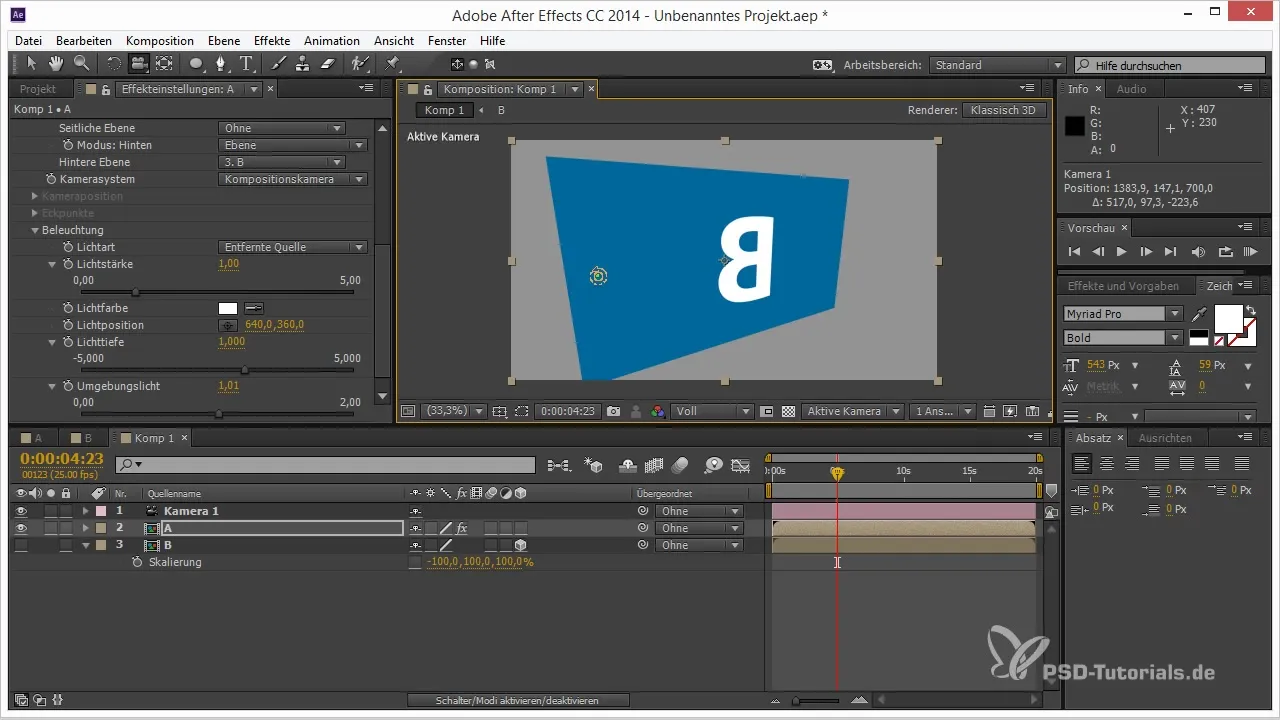

To design the back of your double-sided layer, simply specify layer B in the Card Dance effect. This will create a flat yet double-sided layer that can represent both the front and back.

Step 8: Try Out Shatter Effect

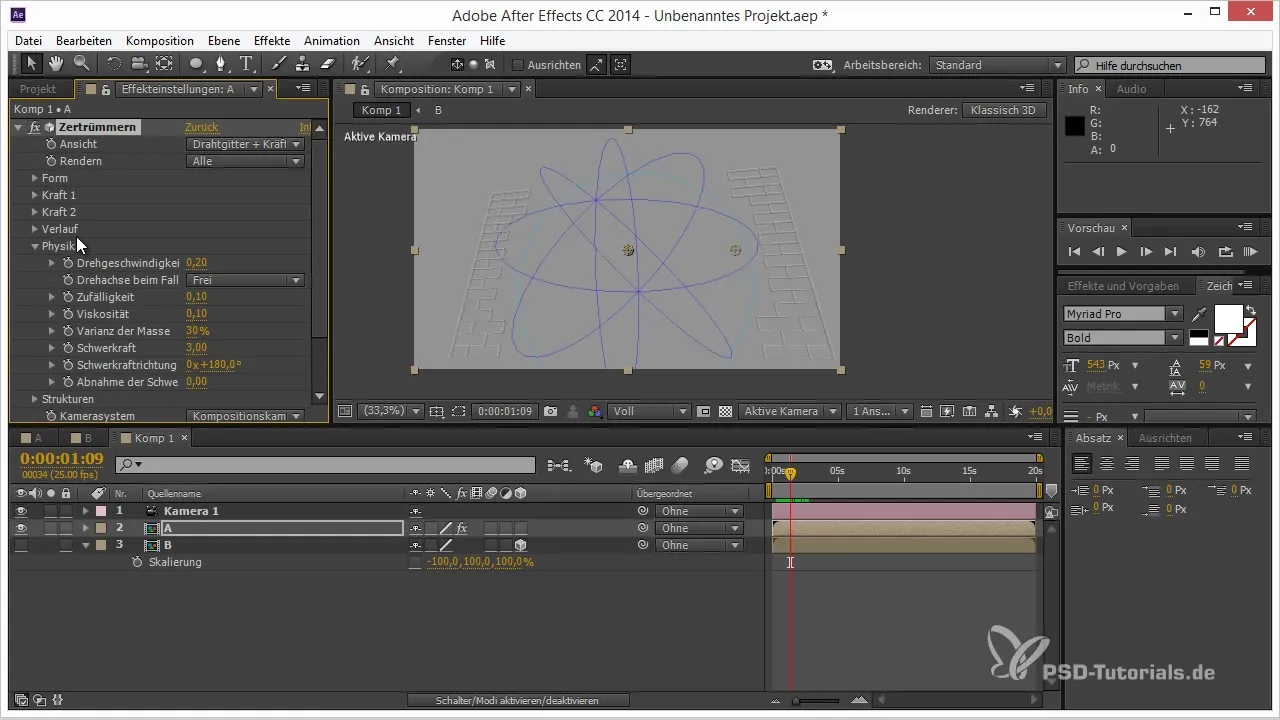

If the Card Dance effect doesn't reflect everything you want, you can also use the Shatter effect. This effect allows you to create another dimension by setting the gravity to zero, thereby keeping the layer stable.

Step 9: Adjust Structure and Colors

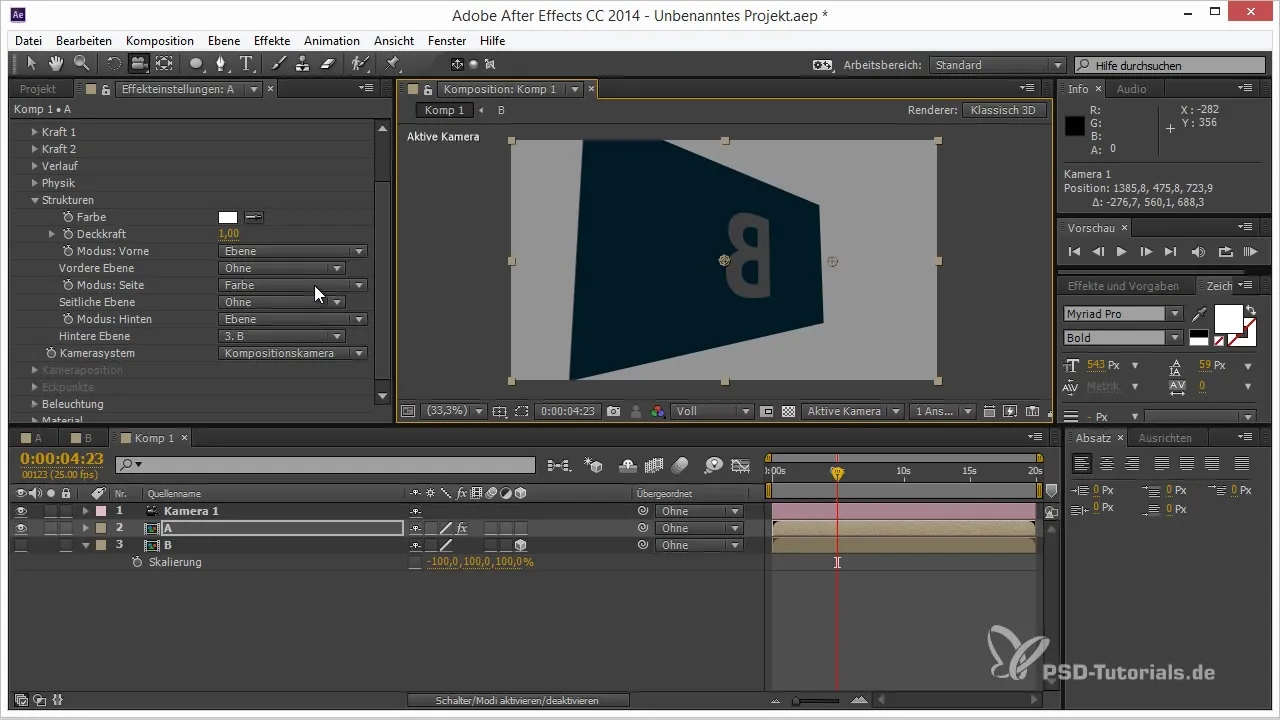

In the option for structures, you can specify different designs for both sides. Change colors and settings to optimize the visual impact of your double-sided layer. Experiment with different lighting and color settings to achieve the best possible result.

Step 10: Finalization and Preview

You have now created a double-sided layer in After Effects. Go through the entire project and check if everything works as you wish. Animate your elements and preview the result to ensure it looks perfect.

Summary – Guide to Creating Double-Sided Layers in After Effects

With the described steps, you now have the opportunity to create impressive double-sided layers in After Effects that come to life with the Card Dance and Shatter effects. You can get creative and customize the effects according to your ideas.
