Guidelines in Affinity Publisher – Making precise layouts easy

If you want to create attractive and precise layoutsin AffinityPublisher, guidelinesare your best friend. They ensure that everything looks structured and tidy. In this tutorial, I will show you how to effectively use guidelines to enhance your designs and simplify workflows.

Key Insights

• Guidelines help align layouts precisely.
• You can easily insert and adjust guidelines.
• You can set different values for guidelines.
• Protection and snap functions make them easier to use.

Project Preparation

Before you start the actual layout, first create a new document. Click on “File” and select “New.” For our purposes, we choose a DIN A5 page in landscape format, ensuring that you disable the facing pages. Make sure to set the margins accurately: 20 mm on the left and right, 15 mm at the top, and 10 mm at the bottom. Once you are done, you will see your empty workspace, ready to be filled.

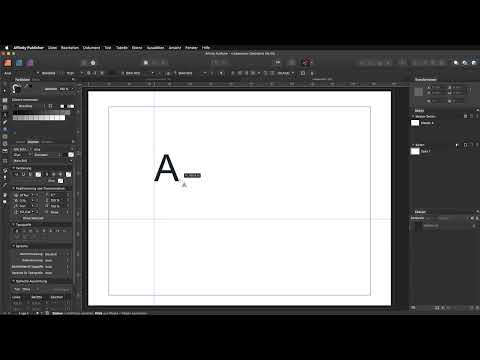

Inserting Guidelines

To use guidelines in your document, you must first activate the ruler. If it is not visible to you, go to the “View” menu and select “Show Rulers” or press Command and R. You can now drag guidelines from the top ruler onto your workspace while holding the mouse button down. Release the line at the desired position.

When adding another guideline, it might not be visible immediately. Make sure that the guidelines are activated under “View.” Once activated, they will appear, and you can move and adjust them as you wish.

Adjusting Guidelines

If you want to move a guideline but the wrong tool is already selected, there is a simple solution. Just click on the ruler at the top and drag the line to the desired position without having to deselect the currently selected tool. You can add as many guidelines as you like to create a grid that helps you with your layout.

If you want to set a guideline to an exact value, you can do this through the “View” dialog and then “Configure Guidelines.” Here you have the option to delete guidelines, create new ones, and adjust the values of existing ones. For example, you might set a guideline to 66.35 mm. However, note that Affinity Publisher generally considers only one decimal place.

Protecting Guidelines

When working with guidelines, it can happen that you accidentally move them. To prevent this, protect your guidelines using the “Protect Guidelines” option, which you can also find under “View.” This keeps their position fixed while you edit objects on your workspace. If you want to move them later, you can easily release them.

If you want to use the guidelines to insert new elements or align them in plans, make sure to utilize the snap function. When you approach an object, the guidelines will automatically pull it in to ensure it is placed accurately. If this bothers you, you can temporarily disable the function by holding down the Alt key.

Applying Guidelines

With the features discussed, you can correctly position text boxes, images, or other objects using guidelines. This ensures that everything in the layout is precisely aligned and creates a harmonious composition. Experiment with different arrangements to achieve the best result for your design.

In conclusion, let’s recap the main points and deepen the knowledge to further expand your applications.

Summary – Guidelines in Affinity Publisher – Your Path to Precise Layout

The use of guidelines in Affinity Publisher is essential for successful and precise layouts. You have learned how to insert, adjust, and protect guidelines to enable error-free work. Use these tools to take your designs to the next level.
